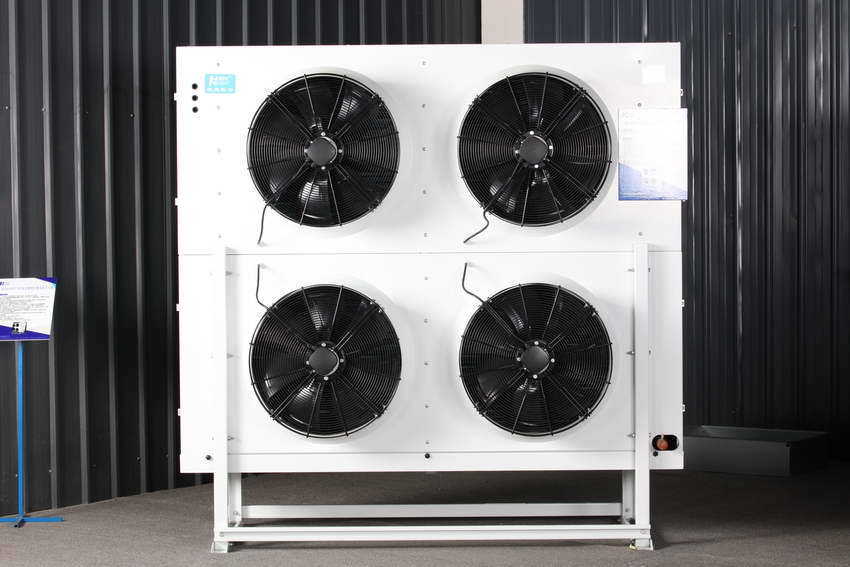

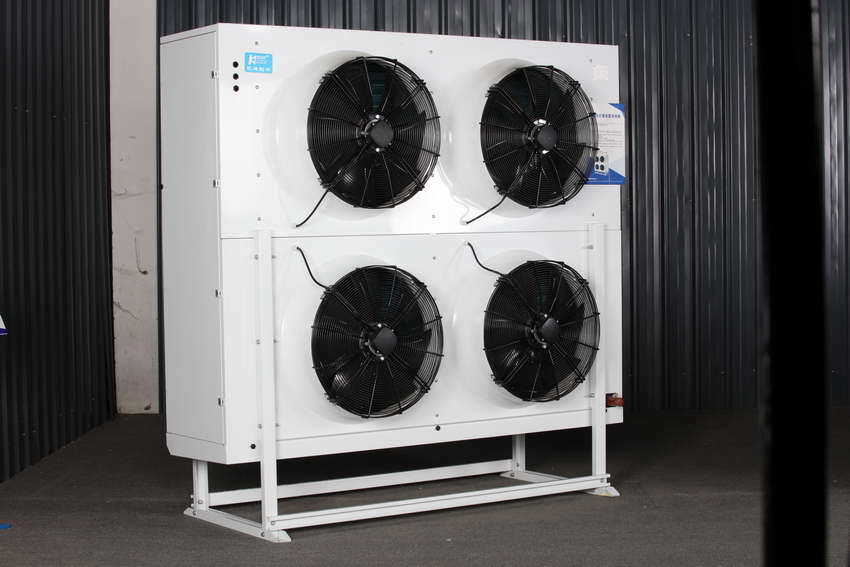

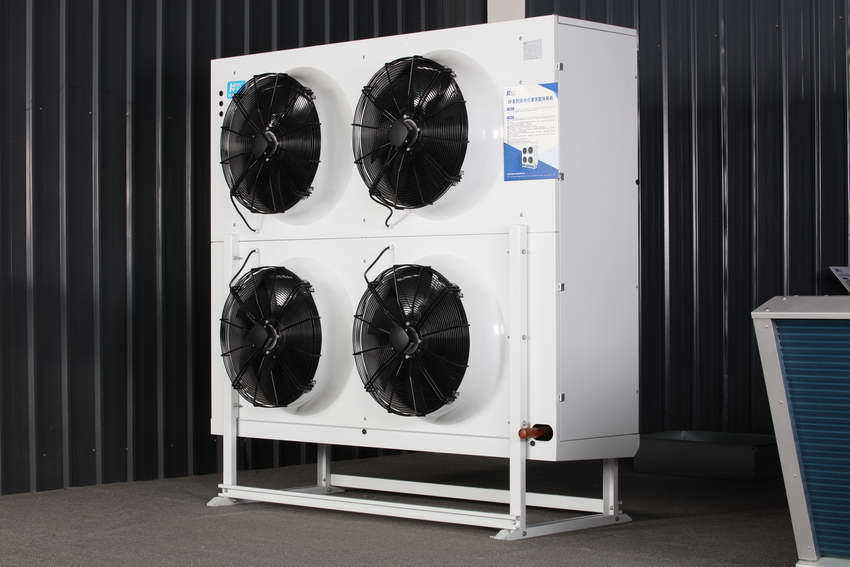

Floor standing quick freezing type air cooler suitable for low-temperature quick freezing cold storage, compatible with R404A/R507/R22 refrigerants, supporting 220V/380V voltage

EF series floor type quick cooler product overview

   EF series air coolers are mainly used for quick-freezing or low-temperature quick-freezing cold store
   1.Enclosure: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL9006), with desirable corrosion resistance; plates on both sides are designed with hinged structure, which is convenient to operate;
   2.Double water tray design: The outer water tray is designed with edge structure with angle, which makes the water drain smoothly without any dead angle; the inner water tray is designed with sink structure made of aluminum plate, and the condensed water or defrost water is directly discharged into the drainage outlet of the outer water tray through the inner water tray;
   3.Designed with overall stretching large arc high air tube, it has the characteristics of excellent air guiding effect.
   4.Coil: The aligned tube pattern 50 X 50 mm features large heat transfer area, low heat transfer temperature difference;
   5.Corrugated aluminum sheet made of hydrophilic aluminum foil, with the sheet spacing of 6.0mm, 9.0mm and 12.0mm to meet different operation requirements;
   6.Far: The fan with blowing air and operating temperature of -45 °C, which is equipped with a motor with higher power and higher wind pressure, to ensure the residual pressure outside the machine, reduce the wind speed on the surface of the food, lower dry consumption, and improve the quality of food freezing;
   7.Defrosting: The electric defrosting is adopted in the standard manner, and the stainless steel heating tubes are distributed in the coil fins and the inner water tray, which can bring about desirable defrosting effect; the heating tube hole in the coil is equipped with an aluminum sleeve to improve the efficiency of defrosting effect;
   8.The IP65 waterproof junction box and waterproof connectors are used,with better waterproofing; the fan and the heating pipe are wired separately, which can lead to high reliability;
   9.The outlet of the air cooler is equipped with a needle valve, which is convenient for users to test the pressure;
   10.It is subjected to strict pressure test at the pressure of 23bar;
   11.The expansion valves, heating band of fan tube and other parts can be pre-installed according to customer’s needs;
   12.It is compatible with R404A, R507A, R448A, R449A, R22 and other refrigerants.

Standard Configuration and Options

  ●:Standard component;○:Optional component;×:Not available

Electrical Parameters
